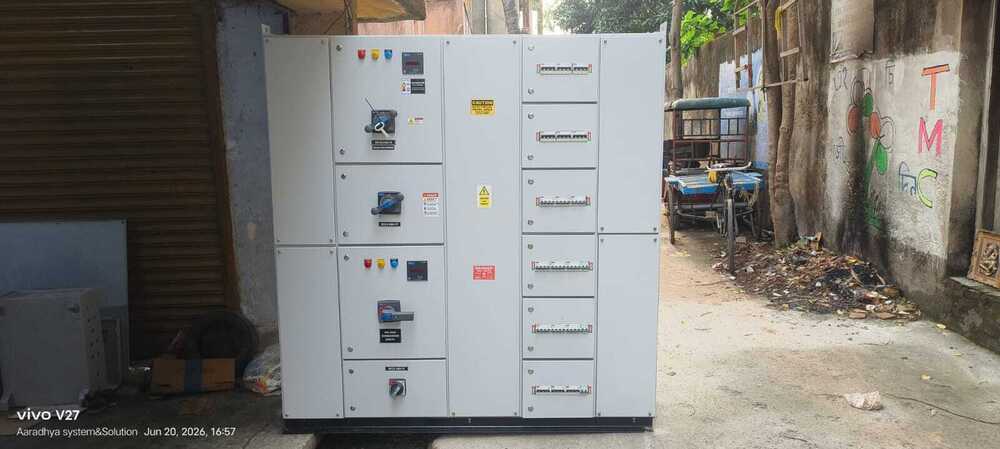

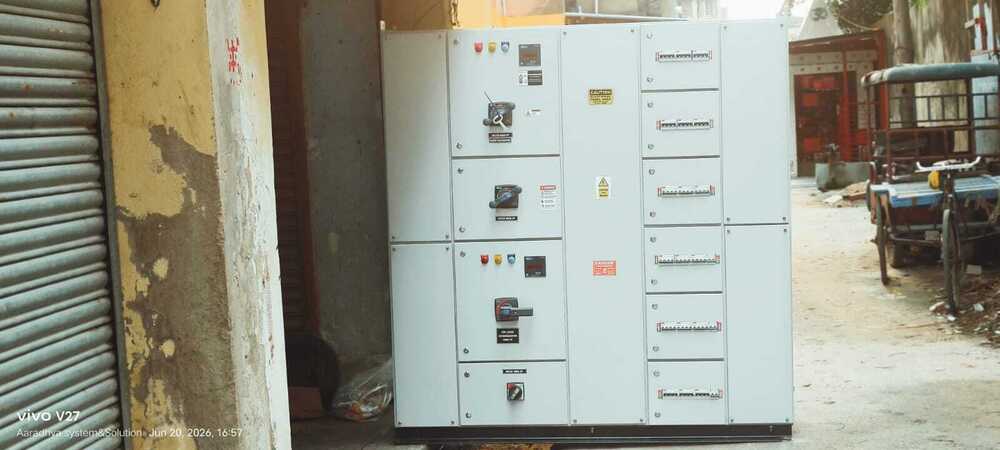

Drive Panels

• Application
• Industrial Automation, Motor Control, VFD Integration

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Contactor, Overload Relay, VFD, Indicators

• Connectivity Type
• Wired

• Control System
• PLC/Relay Based

• Cooling System
• Natural / Forced Air

• Cover Material
• Other, Powder Coated MS

• Current Rating
• Up to 630 A

• Dimension (L*W*H)
• 1200 x 1800 x 600 mm (Customizable)

• Display Type
• Other, Digital Meter / LED Indicator

• Features
• Shock Resistant, Rust Proof, Easy Installation, Modular Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other

• Maximum Output Current
• 630 A

• Operating Voltage
• 380V - 415V

• Panel Type
• Floor Mounted

• Product Type
• Other, Industrial Drive Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 630 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439-1/2

• Surface Color
• Other, Light Grey (RAL 7035)

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 3 Way / Customized

• Application
• Industrial Automation, Process Control

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Mild Steel

• Components
• MCBs, Relays, PLC Module, Terminal Blocks, Power Supply Unit

• Connectivity Type
• Ethernet/RS-232/RS-485 (optional)

• Control System
• Automatic / Programmable

• Cooling System
• Natural Air-Cooled

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 40A - 63A

• Dimension (L*W*H)
• 600mm x 500mm x 200mm (Customizable)

• Display Type
• Other, Indicator LEDs

• Features
• Corrosion Resistant, Durable, Easy Maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 63A

• Operating Voltage
• 230V/415V AC

• Panel Type
• Programmable Logic Controller (PLC)

• Product Type
• Other, PLC Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 40A - 63A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC/IS Standards

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Single/Multiple Ways
